RF Hardware Modules

1Data Aquisition Subsystem.jpg

Data Acquisition Subsystem

Features:

  • A complete, high performance data acquisition subsystem

  • Includes digitizer, FPGA, and CPU

  • Comex CPU card is available with low power Intel Atom or high performance i7

  • Multiple analog channels with bandwidths up to 1 GHz

  • Two arbitary waveform generator outputs

  • 40 digital I/O channels

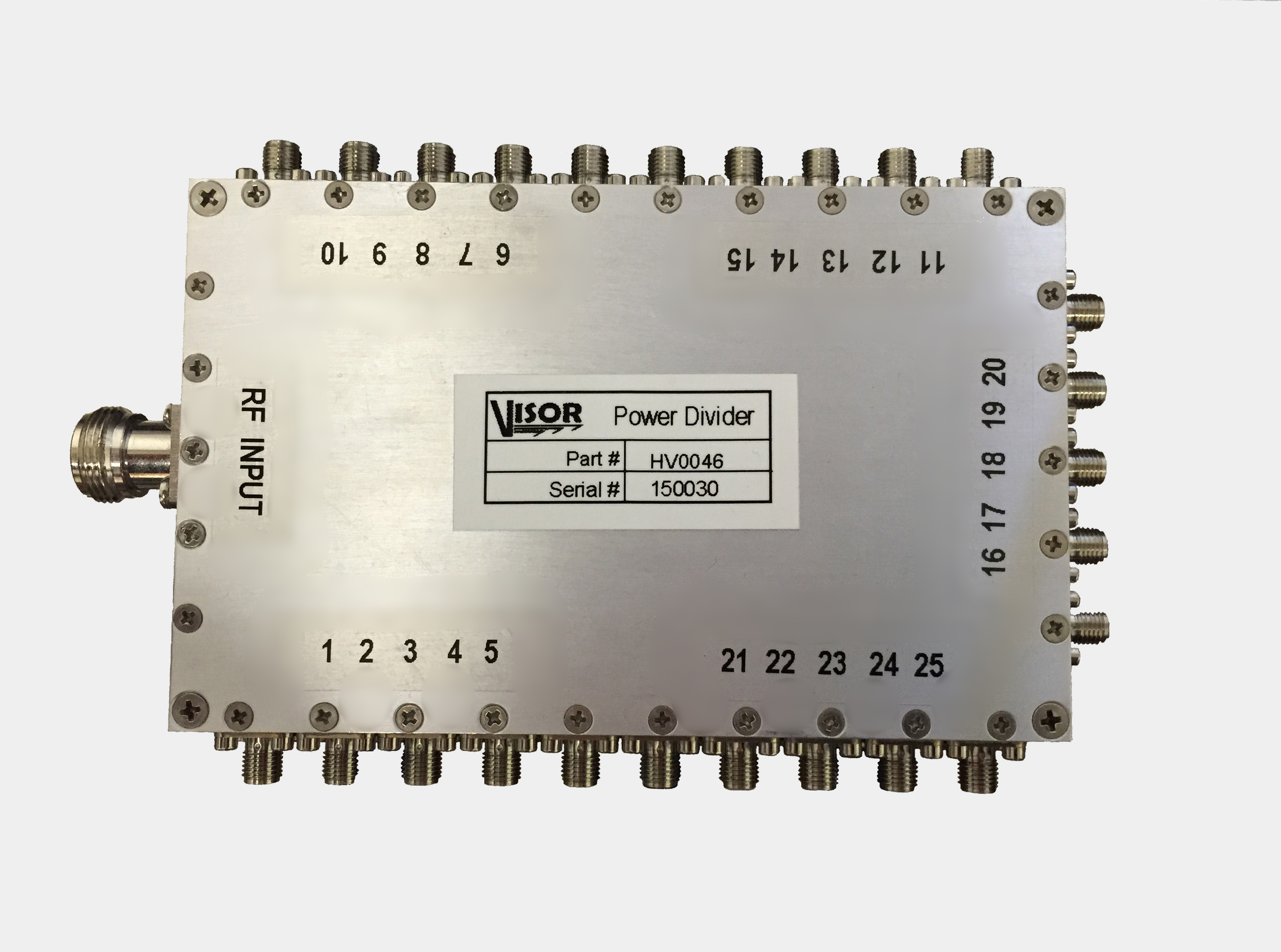

25 Way Power Divider

Features:

  • 25 way L-band power divider

  • Bandwidth: 50 MHz

  • Frequency ranges of 1200-1500 MHz

  • 1 KW input power. Higher power available on custom orders

  • Phase variation of less than 5 degrees

  • Amplitude variation of less than 0.5 dB


Baseband Programmable Gain Amplifier Block

Features:

  • Frequency range: 10-500 MHz

  • Adjustable gain: 6-37 dB, 5-bit TTL control

  • 50 ohm connectorized circuit board
  • Up to 20 dBm output power

  • High dynamic range

  • Low spurious levels


L-band Programmable Gain Amplifier Block

Features:

  • Gain 20-50 dB

  • Frequency ranges of 1200-1500 MHz

  • Digital attenuator provides 1 dB attenuation steps from 0 to 31 dB

  • TTL control of digital attenuator

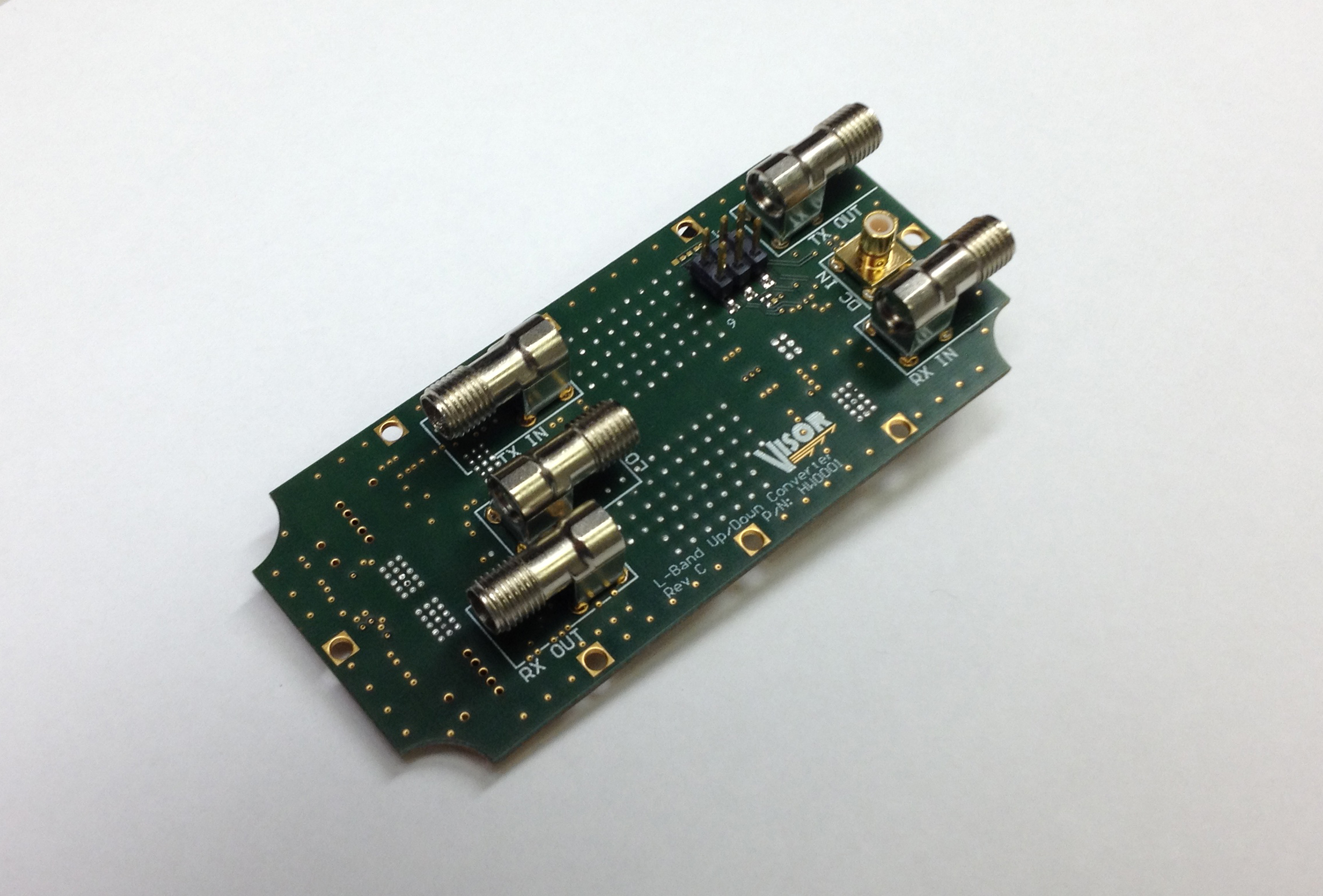

L-band Up/Down Block Converter

Features:

  • Miniature L-band up converter and down converter in a small footprint

  • Baseband frequency range 10-500 MHz

  • L-band frequency range 1100-1590 MHz

  • High dynamic range

  • Low spurious levels

  • Frequency selectable with drop in filter modules

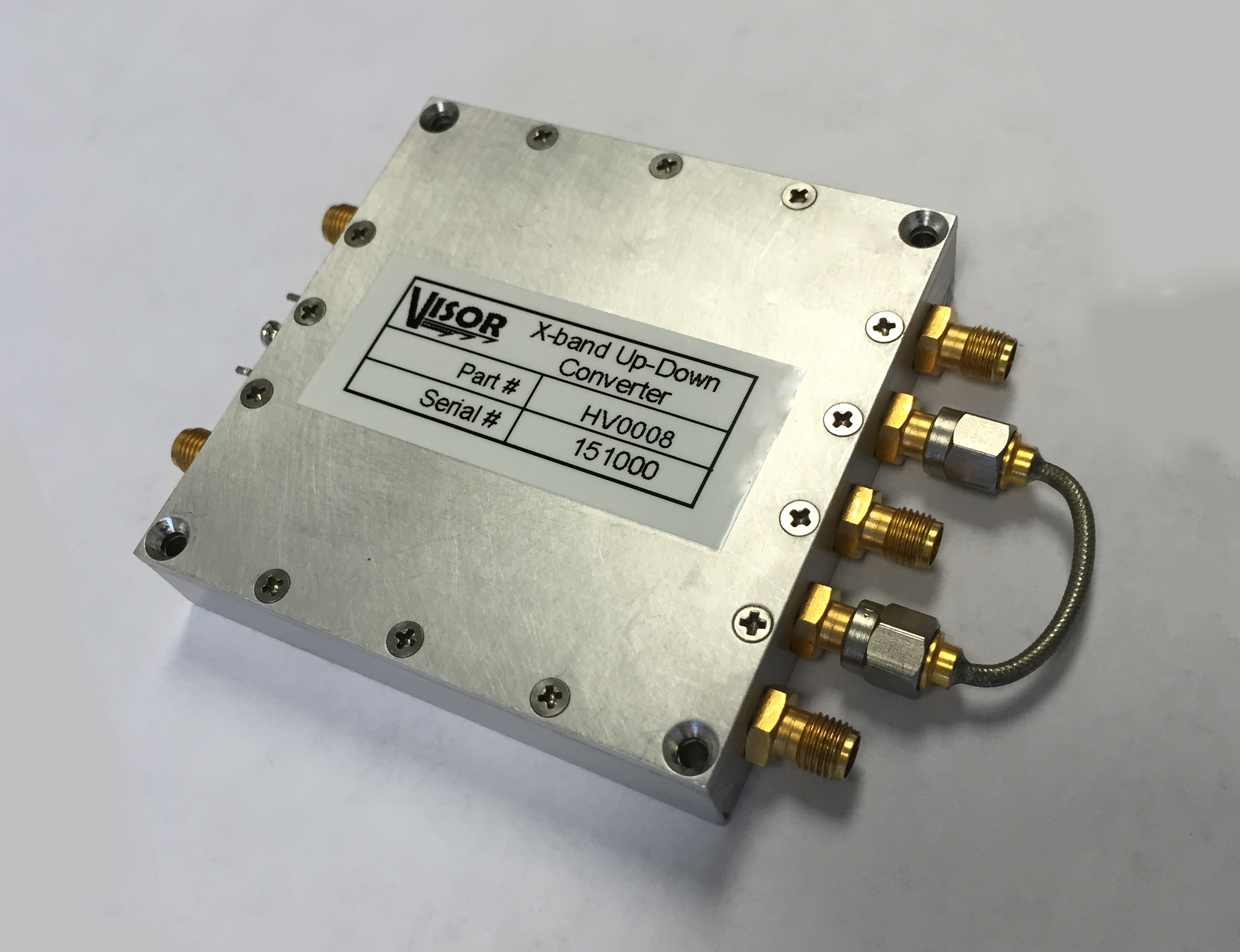

X-band Up/Down Block Converter

Features:

  • Miniature X-band to L-band up converter and down converter in a small enclosure

  • Bandwidths 50-500 MHz selectable with drop in filter modules

  • X-band frequency range 9.0-11.0 GHz selected by the input LO frequency

  • L-band frequency range 1100-1600 MHz

  • High dynamic range

  • Low spurious levels
